80197150

ML150

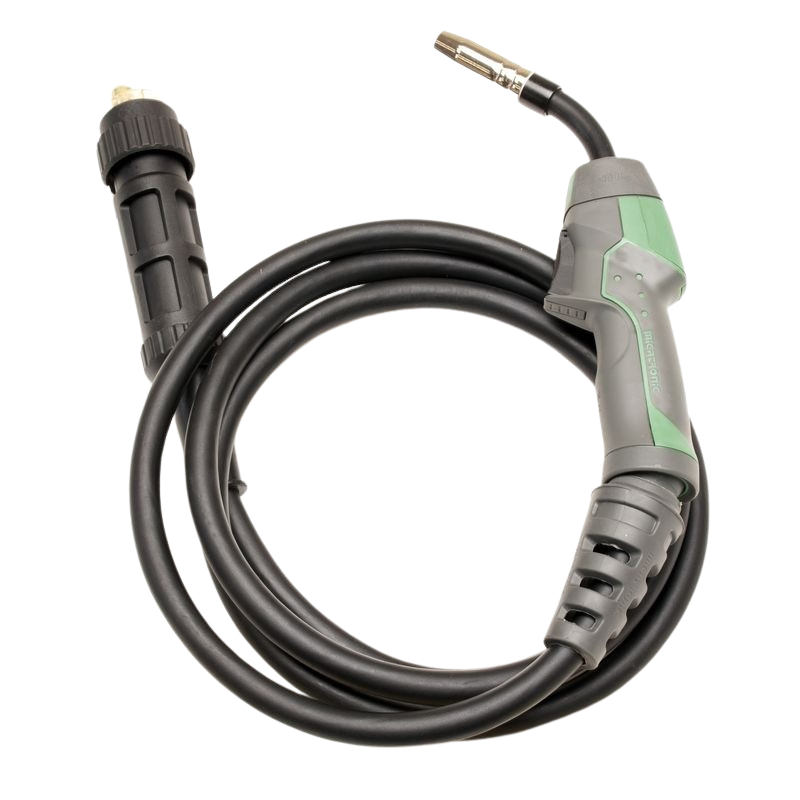

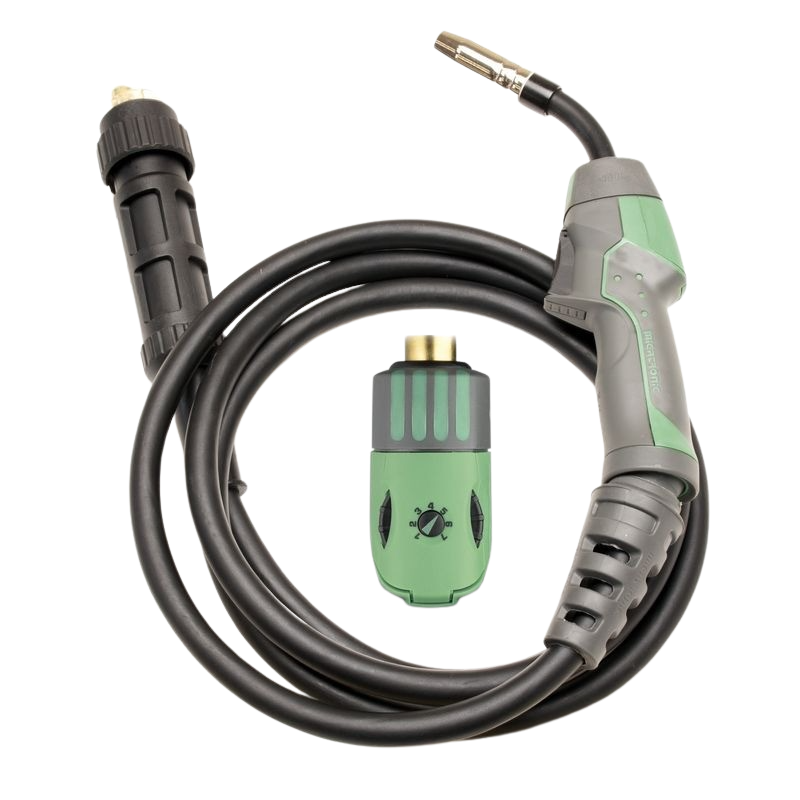

MIG-A Twist® air-cooled torches deliver unbeatable versatility and comfort across a full range of welding applications. A tool-free, turnable swan-neck (±90° in 15° increments) and ergonomic soft-grip handle keep you in a correct posture at any angle, while the KD tip-adaptor and FKS double-chamber cooling ensure long nozzle life and peak performance. Choose from 60 configurations—including remote-control (R), advanced-handle (AH) and aluminium (Alu) options—with Euro (ZA) or other connections, 3 – 8 m lengths and three on-handle modules for infinitely variable current/wire adjustment. All models come complete with gas nozzles, swan necks, diffusers and liners, and are compatible with any welding machine make.
Art. no.
Length
Name
80197150
3 m
ML150 TWIST 0.8
80197151
5 m
ML150 TWIST 0.8
80197153
3 m
ML150 TWIST 0.8
80197156
3 m
ML150 TWIST 0.8 Aluminium
80196150
3 m
ML150R TWIST 0.8
80196151
4 m
ML150R TWIST 0.8
80196155
3 m
ML150R TWIST 1.0 Aluminium
No accessories found.
No spare parts found.
Specification
Value
Duty cycle CO₂ 60%
180 A
Duty cycle CO₂ 100%
160 A
Mix gas 60%
170 A
Mix gas 100%
150 A
Gas flow +/-5%
15 l/min
Wire diameter. mm
0.6 - 1.2
Cable, mm²
16
Weight, kg
0.9 kg
Total weight kg, 3 m
1.8 kg
Connection
ZA

Related MIG/MAG torches

Find a dealer

You can acquire "ML150" at your nearest Migatronic Dealer. Don't forget to include the article number in your enquiry:
Find nearest Migatronic Dealer
Map 2

Name abbreviations explanation

  • MVWater cooled
  • MLAir cooled
  • 300Model size
  • RRemote control/dialog
  • 8 mLength
  • AHAdvanced handle/manager
  • AluAluminum
  • FKSDouble cooling chamber with extra cooling of gas nozzle
  • ZAEuro connection
  • KDSeparate tip adapter

Technical specifications

Duty cycle CO₂ 60%
180 A
Duty cycle CO₂ 100%
160 A
Mix gas 60%
170 A
Mix gas 100%
150 A
Gas flow +/-5%
15 l/min
Wire diameter. mm
0.6 - 1.2
Cable, mm²
16
Weight, kg
0.9 kg
Total weight kg, 3 m
1.8 kg
Connection
ZA
