82036170

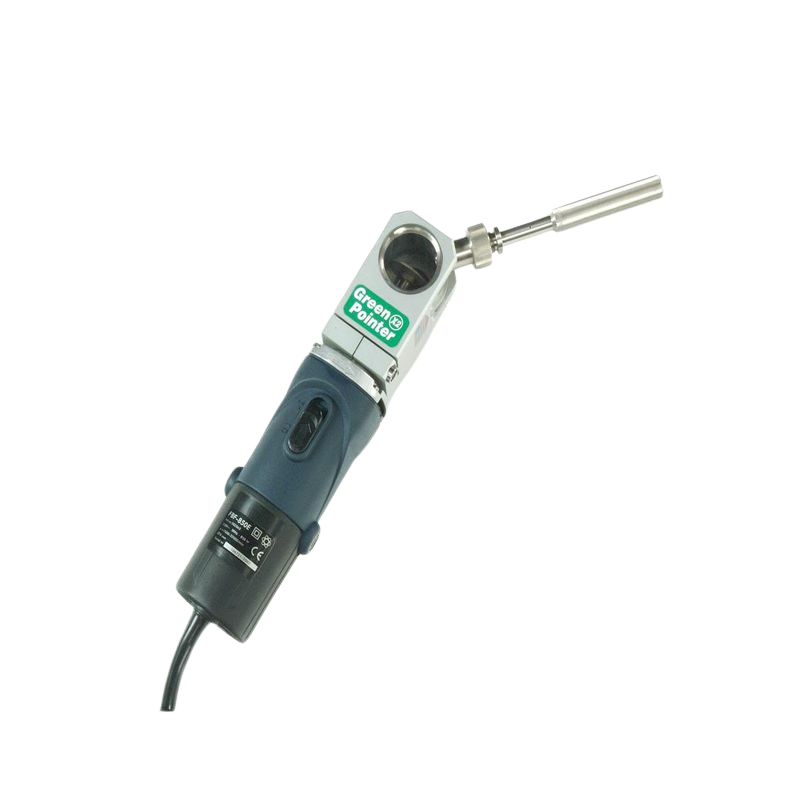

Green Pointer X2

82036170
Compact and portable tungsten grinder (Green Pointer X2) for precise, eco-friendly grinding of 1.0–4.0 mm electrodes, supplied in a transport case with accessories and Schuko plug.

The Green Pointer X2 is engineered for professionals who demand precise, efficient, and clean tungsten electrode grinding. Designed for both workshop and site welding operations, it ensures exact longitudinal grinding for optimal arc performance. The Green Pointer X2 supports a wide electrode diameter range (1.0–4.0 mm) and offers variable angle adjustment from 15° to 180°, giving you full control to match your specific welding requirements.

This robust tool features an integrated high-efficiency filter to capture grinding dust, protecting both users and work environments. It minimizes grinding costs through precise material removal and is capable of grinding electrodes down to a 15 mm length – or even shorter using the specialized clamp. With its adjustable speed motor (14,000–24,000 rpm) and lightweight 2.5 kg design, it delivers excellent handling and flexibility.

The Green Pointer X2 comes fully equipped in a durable storage case, including the motor unit, grinding head with filter housing, diamond wheel, a full range of electrode clamps, and essential tools for easy maintenance and setup. Ideal for TIG welding professionals focused on quality, safety, and efficiency, this tool sets a new standard for electrode preparation.

Key Benefits:

  • Complete package with tools and accessories included for immediate use
  • Exact, clean longitudinal grinding for superior welding results
  • Flexible grinding angles and electrode diameters
  • Portable and site-ready with integrated dust filtration
  • Reduced operational costs through precision and durability
Article number
Type
Product Name
82036173
Accessories
Electrode Clamps (Ø1.0 mm)
82036174
Accessories
Electrode Clamps (Ø1.6 mm)
82036175
Accessories
Electrode Clamps (Ø2.0 mm)
82036176
Accessories
Electrode Clamps (Ø2.4 mm)
82036177
Accessories
Electrode Clamps (Ø3.2 mm)
82036178
Accessories
Electrode Clamps (Ø4.0 mm)
82036172
Accessories
Electrode Holder Green Pointer X2
82036185
Accessories
Table Console Green Pointer X2
Article number
Type
Product Name
Replacement interval
82036171
Spare Parts
Diamond Grinding Disc Green Pointer X2
82036179
Spare Parts
Filter Cassette Green Pointer X2
82036186
Spare Parts
Sight Glass Green Pointer X2
Specification
Value
Motor performance
850 watt
Power
230V/50Hz
RPM
Adjustable between 14000 and 24000 rpm
Weight
2.5 kg
Filter
Inhalation filter
Diamond wheel
40 mm
Electrode size
Ø0.8 - 4 mm Min. length: 19 mm standard (15 mm with special electrode clamps)
Angles
15° - 180°
Grinding speed
28 - 50 m/sec
Speed
22.000 - 28.000 rpm
Weight
2.8 kg
Motor
110V-50/60 Hz, 220V-50/60Hz
Motor effect
850 W
