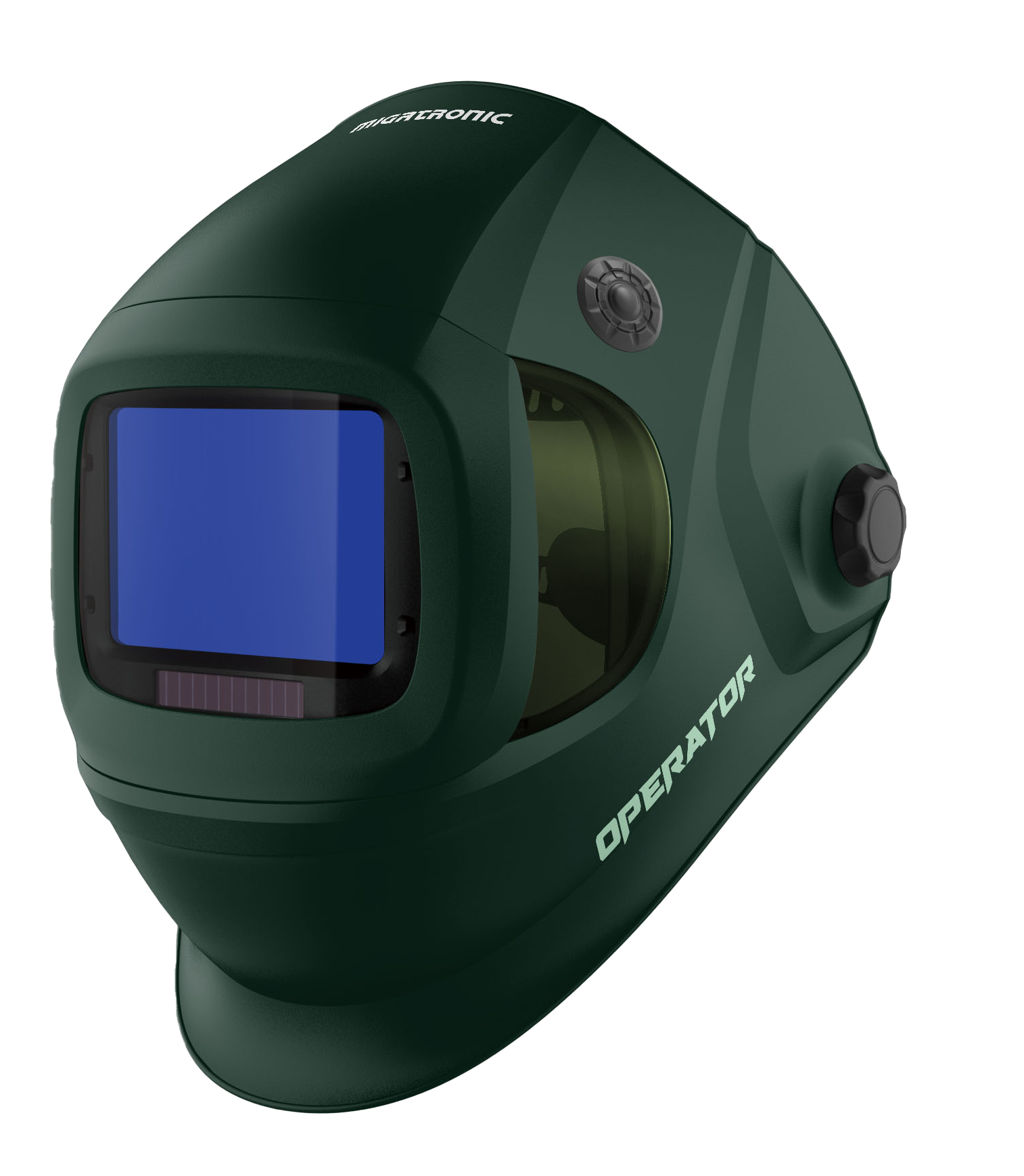

Operator helmet STD (Nordic Pine)

82910102

Stylish Nordic Pine finish welding helmet offering safety and ergonomic comfort for daily welding tasks.

Find a dealer

Operator helmet in Nordic Pine

Supplied in a point-of-sale box.
Includes user manual and batteries.

Article number	Type
82901404	Accessories	Extended hood protection
82901405	Accessories	Extended neck protection
82902408	Accessories	Drawstring bag

Article number	Type	Replacement interval
82901406	Spare Parts	Front lens frame (Nordic Pine)
82901508	Spare Parts	Shell standard (Nordic Pine)
82901403	Spare Parts	Side lens
82901402	Spare Parts	Side lens cover
82901101	Spare Parts	Front cover lens	Once a week. Replace anytime the lens becomes deeply pitted, scratched or too dirty to clean with soft cloth or lens paper.
82901102	Spare Parts	Front cover lens HD (5 pcs)
82901103	Spare Parts	Front cover lens anti-scratch (5 pcs)
82901503	Spare Parts	Headgear – Operator Standard helmet
82901505	Spare Parts	Sweatband (Operator)	Once a month. Replace more often if sweatband becomes unhygienic.
82901506	Spare Parts	Soft pad rear sweatband
82901507	Spare Parts	Face seal (Operator)	At least every two months. Replace earlier in really dirty environments, or if it has splits or tears or whenever the seal becomes unhygienic.
82901301	Spare Parts	Auto darkening filter (750MG)
82901104	Spare Parts	Inside cover lens (5 pcs)	Once a month. Regularly clean with a soft cloth and replace if any pits or scratches occur.
82901115	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +2.75
82901111	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +1
82901112	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +1.5
82901113	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +2.0
82901114	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +2.5

Specification	Value
Optical Class	Approved
Viewing Area	107 x 75 mm (4.21" x 2.95")
Cartridge Size	156 x 123 x 33 mm (6.14" x 4.84" x 1.30")
Arc Sensor	4
Light State	DIN 3
Grind State	DIN 3
Cutting Shade	Shade No. from 5 to 8
Welding Shade	Shade No. from 9 to 13
Shade Control	Internal, Digital Display Control
Power On / Off	Automatic On / Off
Sensitivity Control	Low ~ High, Digital Display Control
UV/IR Protection	Up to Shade DIN13 at all times
Power Supply	Solar cell. Battery replaceable, 2 x CR2450 lithium battery
Switching Time	1/25,000 s. from Light to Dark at 55 °C (131 °F)
Grinding	Yes
Delay (Dark to Light)	0.1 ~ 1.0 s, Digital Display Control
Low Amperage TIG Rated	≥ 2 amps (DC); ≥ 2 amps (AC)
Operating Temp.	-5 °C ~ +55 °C (23 °F ~ 131 °F)
Storing Temp.	-20 °C ~ +70 °C (-4 °F ~ 158 °F)
Helmet Material	High Impact Resistance Nylon
Total Weight	778 g
Application Range	Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding
Approved	CE, EN ISO 16321-1 :2022, EN ISO 16321-2:2021, EN 175, EN 166 ANSI Z87.l, Z94.3, AS/NZS 1338.l

Operator helmet – Air fed with Hard hat (Nordic Pine)

82910111

Air-fed welding helmet with Hard hat and Nordic Pine finish. Combines protection, style, and respiratory safety.

Operator with PAPR kit HD (Midnight Black)

82920111

All-in-one air-fed welding solution with OPERATOR MG750 helmet and powered respirator with heavy duty battery. Designed for maximum protection, comfort, and freedom of movement in demanding welding environments. Ideal for professionals who prioritise clean air and uninterrupted focus.

Operator with PAPR kit HD (Nordic Pine)

82920112

All-in-one air-fed welding solution with Operator MG750 helmet and powered respirator with heavy duty battery. Designed for maximum protection, comfort, and freedom of movement in demanding welding environments. Ideal for professionals who prioritise clean air and uninterrupted focus.

Operator with PAPR and Hard Hat kit (Nordic Pine)

82920211

All-in-one air-fed welding solution with Operator MG750 helmet, Hard hat and powered respirator. Designed for maximum protection, comfort, and freedom of movement in demanding welding environments. Ideal for professionals who prioritise clean air and uninterrupted focus.

Operator with PAPR kit (Midnight Black)

82920101

All-in-one air-fed welding solution with OPERATOR MG750 helmet and powered respirator. Designed for maximum protection, comfort, and freedom of movement in demanding welding environments. Ideal for professionals who prioritise clean air and uninterrupted focus.

Operator with PAPR kit (Nordic Pine)

82920102

All-in-one air-fed welding solution with Operator MG750 helmet and powered respirator. Designed for maximum protection, comfort, and freedom of movement in demanding welding environments. Ideal for professionals who prioritise clean air and uninterrupted focus.

Operator PAPR UNIT (with Quick Connect hose)

82930101

Operator Powered Air Purifying Respirator (PAPR) unit has a filter efficiency of 99.997%, and the air flow is easy to adjust with one button function. PAPR includes PAPR unit equipped with P3 filter and pre-filter, a blower, filtration unit, breathing tube, battery, shoulder strap and belt.
